A ni oye ọlọrọ ni iṣelọpọ Inch CNBL..DP Spherical Ball ID .165" si 2.000" fun awọn bearings COM. Bọọlu isẹpo yii ṣe atilẹyin ipalọlọ multidirectional, isanpada fun awọn aṣiṣe apejọ chassis, ati ṣe idaniloju gbigba mọnamọna dan laisi abuda. O le koju awọn ẹru fifẹ ati finnifinni lati awọn apa iṣakoso, jẹ ki o dara fun awọn ipo wuwo{5}} ni pipa-opopona ati awọn ọkọ ayọkẹlẹ iṣẹ. O jẹ ki iṣakoso deede ṣiṣẹ nipasẹ imukuro imukuro abuku ni awọn igbo, jiṣẹ esi idari iyara ati titete chassis iduroṣinṣin. Isọpọ naa le ni idapọ pẹlu awọn asopọ apa iṣakoso asapo lati ṣatunṣe ni irọrun ati ṣatunṣe awọn eto tito kẹkẹ mẹrin-.
O dara fun iyipada awọn ọpa tie, awọn apa idadoro, ati awọn ọna asopọ ọgan-irorun -.
Ọja Ifihan
Ohun elo, Itọju Ooru & Pari SPEC: Ti nso irin 52100, Irin alagbara, irin 430, 440, 17-4PH, Harden, Polish, Lile chrome plated wa
Imọ paramita

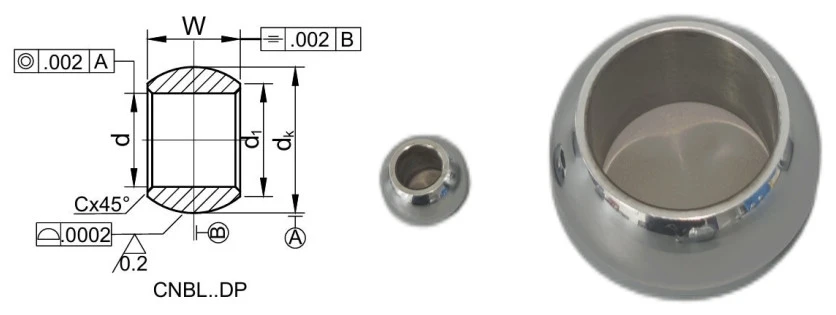

Inch CNBL..DP Spherical Ball ID .165" si 2.000" fun COM bearings
| Apakan No. | Iwe data - Inch CNBL..DP Ball | |||||
| CNBL..DP | d+.0015-.0005 | W+.000-.005 |
Ball dia. dk |
d1 » |
ChamferC±.005 | Àdánù» (lbs) |
| CNBL2DP | .1650 | .250 | .343 | .235 | .015 | .004 |
| CNBL3DP | .1900 | .281 | .406 | .293 | .015 | .006 |
| CNBL4DP | .2500 | .343 | .500 | .364 | .015 | .011 |
| CNBL5DP | .3125 | .375 | .562 | .419 | .015 | .013 |
| CNBL6DP | .3750 | .406 | .656 | .516 | .015 | .021 |
| CNBL7DP | .4375 | .437 | .687 | .530 | .015 | .021 |
| CNBL8DP | .5000 | .500 | .781 | .600 | .015 | .031 |
| CNBL9DP | .5625 | .562 | .875 | .670 | .015 | .042 |
| CNBL10DP | .6250 | .625 | .968 | .739 | .020 | .057 |
| CNBL12DP | .7500 | .750 | 1.187 | .920 | .020 | .108 |
| CNBL14DP | .8750 | .875 | 1.312 | .980 | .025 | .134 |
| CNBL16DP | 1.0000 | 1.000 | 1.500 | 1.12 | .030 | .203 |
| HCNBL16DP | 1.0000 | 1.000 | 1.687 | 1.36 | .030 | .335 |
| HCNBL19DP | 1.1875 | 1.187 | 2.000 | 1.61 | .030 | .558 |
| HCNBL20DP | 1.2500 | 1.187 | 2.000 | 1.61 | .030 | .517 |
| HCNBL24DP | 1.5000 | 1.375 | 2.312 | 1.86 | .035 | .750 |
| HCNBL28DP | 1.7500 | 1.562 | 2.625 | 2.11 | .035 | 1,042 |
| HCNBL32DP | 2.0000 | 1.750 | 2.937 | 2.36 | .035 | 1.396 |
| Ohun elo, Itọju Ooru & Pari |
|
Ti nso irin 52100 Irin alagbara, irin 430,440, 17-4 PH Harden, Polish, Kiroomu lile palara wa |
FAQ
Q1: Bawo ni o ṣe rii daju pe didara ọja ati aitasera ipele?
A1: A lo - ilana QC ni kikun:
Ayẹwo ohun elo aise: Idanwo to muna fun gbogbo awọn ohun elo ti nwọle.
Ninu -Iṣakoso ilana: Awọn iṣedede iṣọkan ati abojuto akoko gidi{{1}.
Ayẹwo ikẹhin: 100% ayẹwo wiwo pẹlu awọn idanwo iṣẹ-ṣiṣe laileto.A tọju awọn ijabọ pipe ati awọn ayẹwo fun wiwa ni kikun.
Q2: Bawo ni MO ṣe le gba awọn ayẹwo?
A2: Awọn ayẹwo ọfẹ wa fun awọn nkan iṣura{{1}. Ti ko ba si ọja, a le pese iru awọn ọja fun itọkasi tabi gbejade awọn apẹẹrẹ aṣa ni idiyele afikun.
Q3: Kini akoko asiwaju rẹ?
A3: Ni deede 45-60 ọjọ fun awọn ibere akọkọ, ati awọn ọjọ 30-45 fun awọn ibere atunṣe.
Q4: Ṣe o funni ni ọpọlọpọ awọn apoti ati iṣẹ aami ikọkọ?
A4: Bẹẹni. A pese iṣakojọpọ ile-iṣẹ boṣewa, awọn apoti awọ aṣa, ati aami ikọkọ pẹlu aami rẹ ati koodu iwọle.
Q5: Kini ilana OEM rẹ fun awọn apẹrẹ ipari ọpa tuntun?
A5: Ilana OEM wa: itupalẹ ibeere → apẹrẹ → prototype & afọwọsi → tooling & ibi-gbóògì → QC & ifijiṣẹ agbaye. A tọju ibaraẹnisọrọ to sunmọ jakejado.
